Hardwire Electronics PDM 10

Manufacturer: Hardwire Electronics
SKU: HW-PDM-10
$665.00

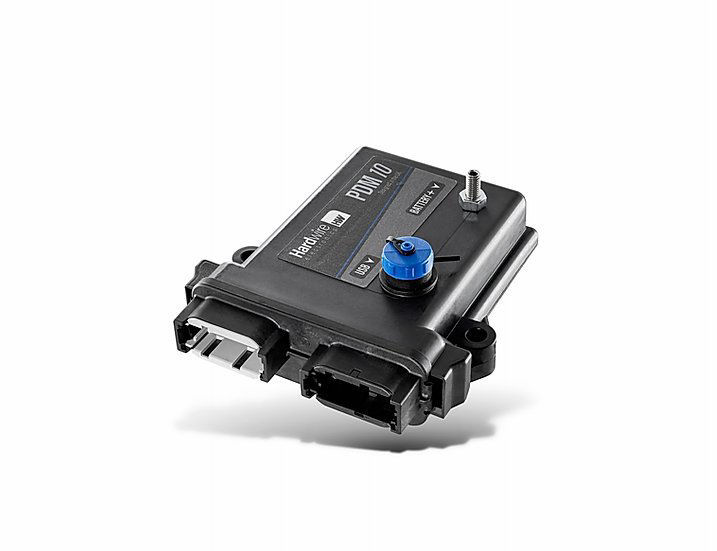

The PDM 10 is our most entry level PDM, offering 10 fully configurable and programmable outputs along with 10 inputs. The PDM 10 can support a total output of 150A and a max peak output of 80A per output. The PDM 10 includes the Deutch connectors and pins to get set up and running. Contact us to have your PDM preconfigured before shipping.
*
+ -

Included

  • PDM10
  • 2x Deutch DTM Connectors + contacts
  • USB memory stick with PDM software and instructions preloaded
  • USB Cable
  • M6 ring terminal & cover

Advantages Over Fuses and Relays

  • Greatly simplifies system wiring and reduces system component count.

  • Reduces the weight of the electrical system.

  • Provides increased reliability over traditional systems using mechanical relays.

  • Solid state technology removes the problem of relay contact corrosion and relay bouncing in vibration heavy applications.

  • Smart features such as indicator and wiper motor modes remove the need for extra control units.

  • Current draw can be monitored and logged to pre-emptively detect faults.

General Features

  • Size: 133x119x36mm

  • Weight: 250g

  • Operating Temperature: -55°C to 90°C (-67°F to 194°F)

  • Construction: Glass Fibre Reinforced Plastic

  • IP Rating: IP67

  • Connectors: Deutsch DTM 12-Pin

  • Update Rate: Up to 800Hz

Inputs

  • Type: 10 Analogue inputs, which can also serve as digital inputs

  • Measurement Range: Each input can measure between 0V-6V

  • Measurement Resolution: 10-Bit, or 0.01V

  • Protection: Fully protected for input voltages from -24V to 40V

  • Added Features: Current sourcing for ground switch detection. Configure as active high or low. Configurable Hysteresis voltage. Latching or momentary operation.

Outputs

  • Type: 10 High side outputs 80A peak, 15A continuous.

  • Combined: 150A combined output maximum current

  • Output Current Control Steps: 100mA (0.1A)

  • Protection: Each output is overcurrent, overtemperature, load dump and reverse polarity protected.

  • 5V: One 5V, 500mA output for supplying external sensors

  • Added Features: Outputs can be configured to stay on for a specified time after the input is removed, useful for thermo-fans. Outputs can be retried multiple times after an over-current event is detected.

Data Logging

  • Storage: 128Mb of onboard flash storage for logging PDM data

  • Speed: 0.1Hz to 50Hz

  • Viewing: Data can be downloaded and graphed via the Hardwire Electronics PDM configurator software

Functions

  • Output Functions: Each Output can be switched with a user defined function

  • Logical Operators: AND, OR, NOR, XOR, NAND, NOR, >, >=, <, <=, Equal, Not Equal

Bluetooth

  • Version: Bluetooth v4.0

  • App: Available in future software update

USB

  • Type: USB 2.0 Compliant Mini-B

  • Driver: Integrated driver for Windows 10

Products specifications
IP Rating IP67
Connectors Deutsch DTM 12-Pin
Number of Inputs 10
Number of Outputs 10
Maximum Output Current (Combined) 150A
Maximum Output Current Per Output (Peak) 80A
Maximum Output Current Per Output (Continuous) 15A
Weight 250g
*
*
*
*
