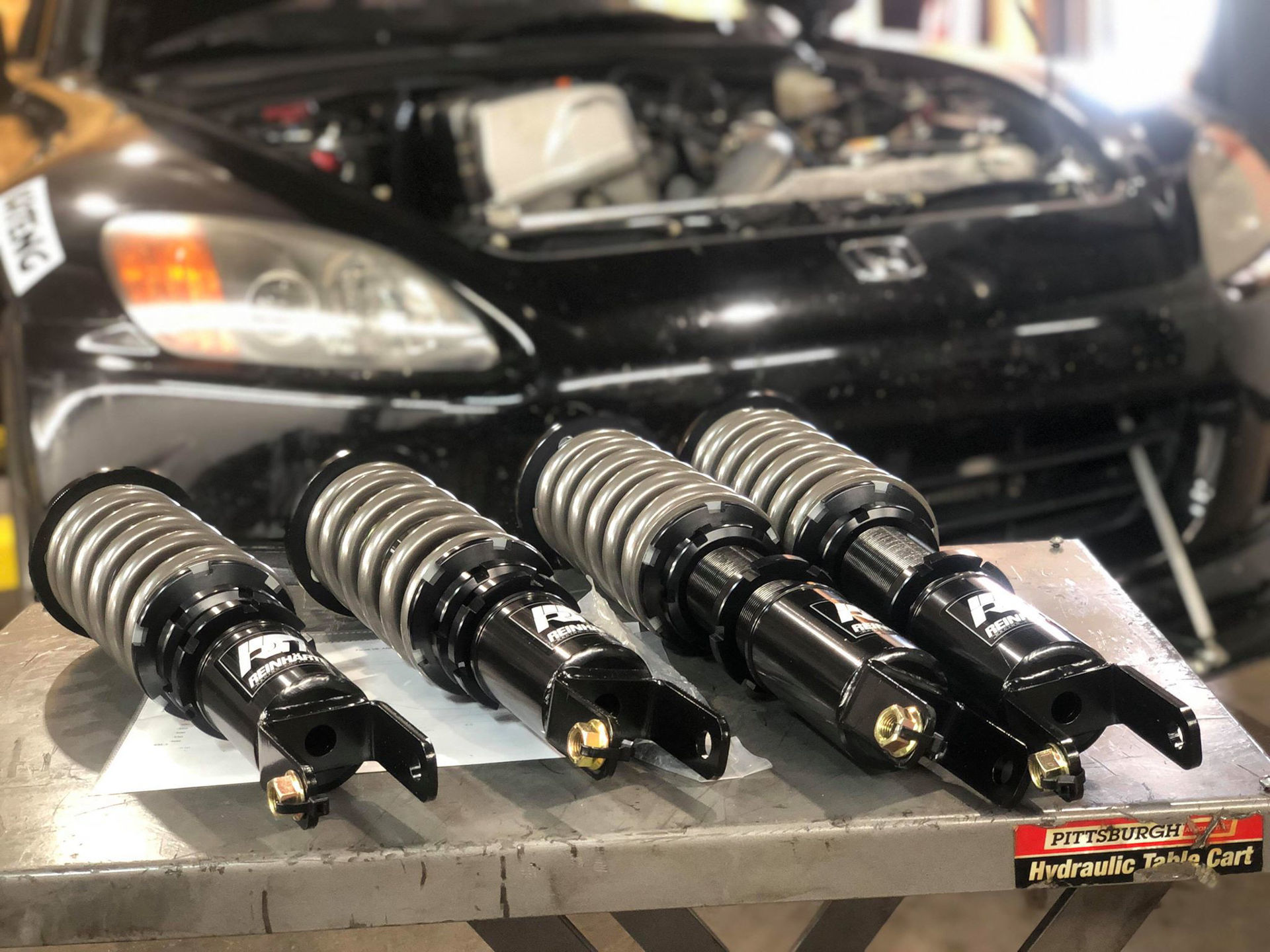

Reinharte Racing R1 Coilover System - S2000 - ASM Spec

Manufacturer: ASM_Suspension
Through thousands of laps, we’ve worked with Reinharte Suspension to develop a track proven coil-over package at a very affordable price.
+ -

Not just another coilover.  Through extensive testing, we've worked with Reinharte (Located here in Chicago IL) to build a coilover package the delivers results.  A very affordable package thats already fine tuned and ready to go out of the box.

Single rebound adjustability allows for some adjustment, but reduced the complexity of milti-way adjustable suspension.

ASM-Spec Valving

Default spring rates are set to match a 2800-3000 total weight S2000 (with Driver) using a high grip street tire (100-200TW type tire)

Ride heights and alignment specs will be provided upon purchase.

Disounted install options avalible.  Contact us.

Customers who bought this item also bought

Timken S2000 Wheel bearing, each

S2000 OE replacement wheel bearings. Sold individually. TIMKEN 510050

Karcepts S2000 Rear Billet hubs, PAIR

The OE S2000 rear wheel hubs are unfortunately a weak point when combined with track use and meaty tire setups. The primary failure point is from the lightening cut-outs on the backside of an already thin hub flange. Karcepts S2000 Rear Hubs are filled in solid and built with an increased flange thickness. Rotor retention screw holes have also been eliminated. These 3 simple geometric adjustments have reduced stresses by two-fold over the OE units. Along with design optimization, Karcepts hubs are machined from chromoly steel and heat treated for an even greater endurance limit. Direct replacement for Honda 42210-S2A-000 Solid 8.75mm thick hub flange (9% thicker than OE) CNC turned from billet chromoly steel Oil quenched and tempered for improved fatigue strength Precision ground bearing journals Maintains OE rotor-centric attributes and offset Fits all 00-09 Honda S2000 without modification Wheel studs not included Sold in pairs
