AP2- Ballade 04-09 S2000 Spherical Suspension, Master Kit

SKU: BS-AP2-SSB-MF
$999.00

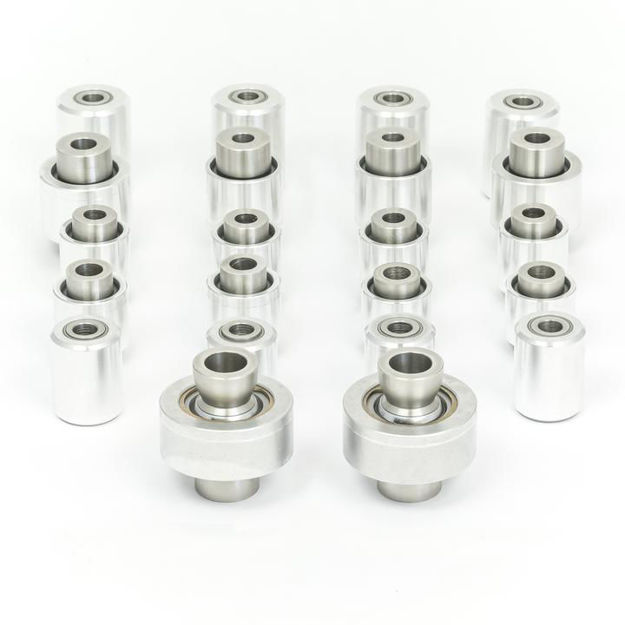

S2000 Ballade Spherical Suspension, Master Kit 2004-2009 S2000 (00-03 has different rear upper control arms.) Replace those old ripped stock rubber bushings with something that doesn't deflect and moves freely. Don't have a press? Don't want to make a mess? Send us your OEM arms and we'll install these all for you. ($575 service, does not include shipping)
+ -

Ballade Sports designed a virtually maintenance free suspension bushing kit using the HIGHEST quality "American Made" spherical joints for all the Lower Control Arm pivot points along with solid straight Upper Control Arm Bronze bushings. This kit is a must for road race enthusiast looking eliminate alignment deflection and slop from rubber control arm bushings. Until now, no other manufacturer has produced a Spherical kit for the S2000 that is protected from dust and debris. Ballade Sports Spherical Cups use a rubber O ring to keep out contaminants, keeping the Spherical joint clean while on the road. The Upper control arm bushings are made out of Steel/Bronze/Aluminum construction that is press fit and notched with Inner O rings on both ends keeping the bushing maintenance free.

The Front LCA rubber Compliance bushing is replaced with our Large Caster Spherical Spherical along with the matching Camber Spherical.

The Rear LCA and Toe Arm rubber bushings are also replaced with Spherical joints.

Please Note: The Spherical joint used for the rear Toe Arm also does double duty as an Anti-Bumpsteer kit to reduce snap over steer.

The Front & Rear Upper Control Arm bushings use our Bronze Straight Bushings replacing the factory rubber.

*
*
*
*
